Linear Grilles

Including linear grilles, linear floor grilles, linear floor grilles framed and special water cut grilles.

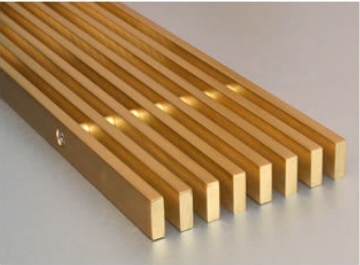

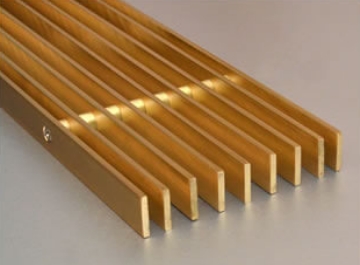

There are two designs of linear grilles, framed or unframed. Either grilles are offered with a choice of 3/4″ x 1/8″ (19 x 3mm) or 3/4″ x 1/4″ (19 x 6mm) bars. The bars can be spaced at either 1/4″ (6 mm) or 3/8″ (10mm). If required, the bars can be angled at 15 degrees to deflect the air flow. Framed grilles are manufactured using 3/4″ x 1/8″ (19 x 3mm) brass angle. All linears are available in a number of special finishes. As the linear grilles are made to order, if you require different spacing, bar size or frame size then please contact us.

Range:

Ordering Specifications:

Product Aperture Size Ordering Code
Linear Brass Grille 3mm
Linear Brass Grille 6mm

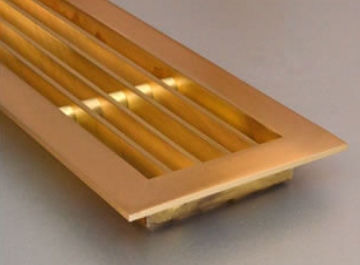

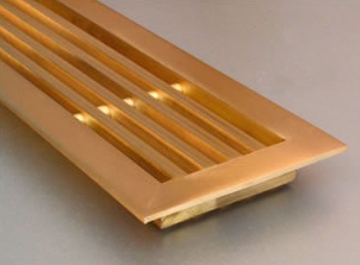

Linear Brass Grille 3mm Framed
Linear Brass Grille 6mm Framed
